Product Description
Product description

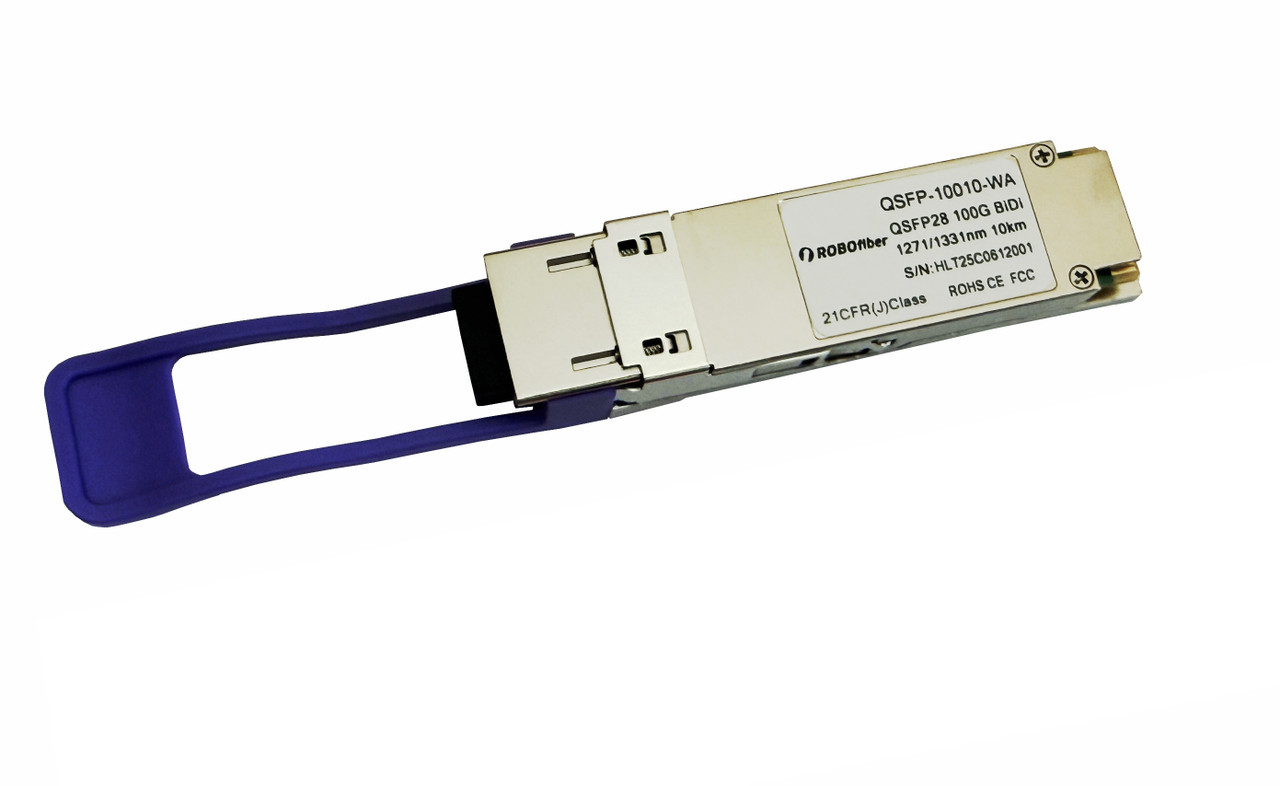

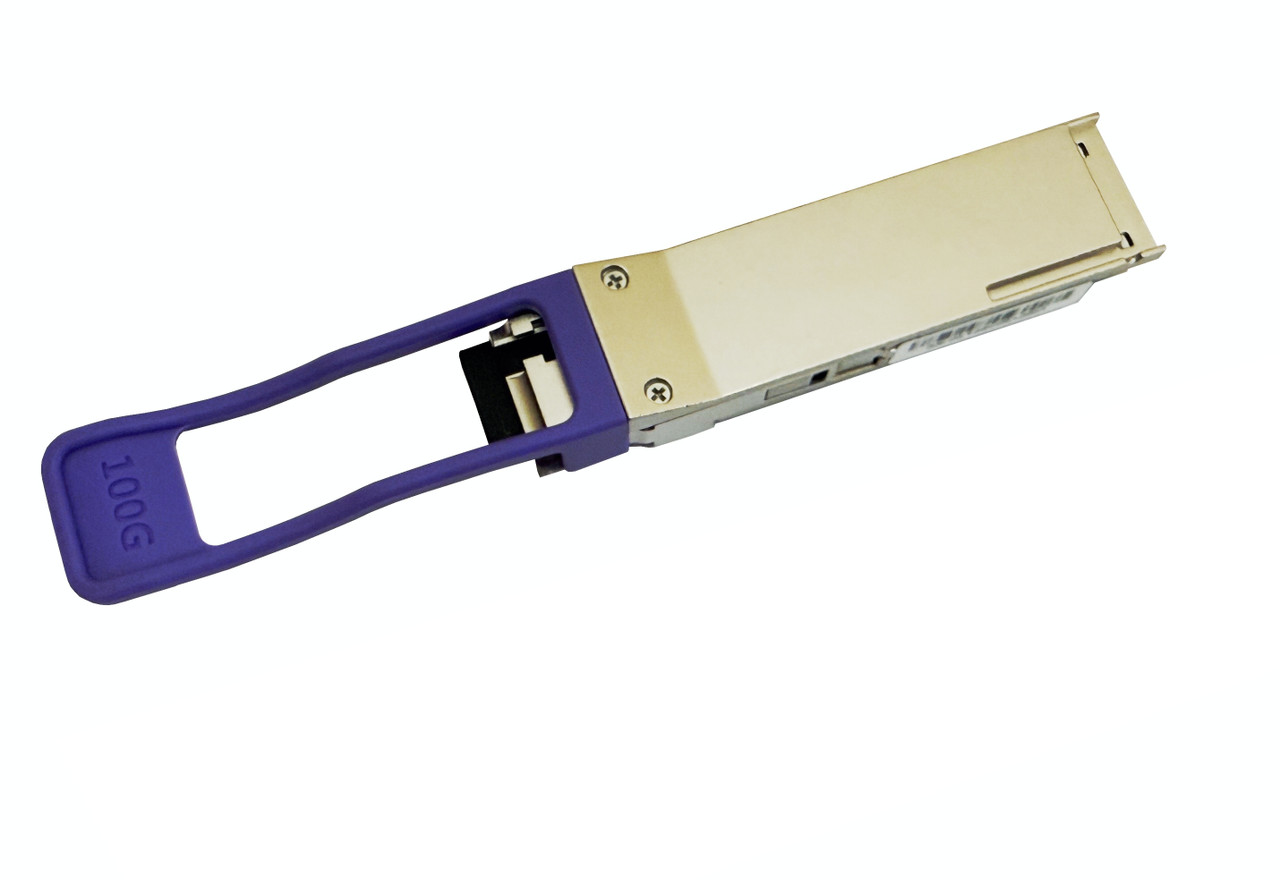

The QSFP-10010-WA is a Bi-Directional single strand single-mode 100G QSFP28 optical module. Transceiver uses a pair of single lambda lasers (T:1271/R:1331nm). The QSFP-10010-WA must be paired with QSFP-10010-WB using complementary wavelengths.
The transceiver has been tested and found compatible on 100G QSFP28 ready Ethernet switches from Arista, Cisco, Juniper, and Edge-Core. Transceiver operates into any 3rd party vendor equipment that follows the MSA open slot standard..
QSFP-10010-WA 100G QSFP28 SMF module specifications
| Form factor | QSFP28 |
| Speed | 100Gb/s |

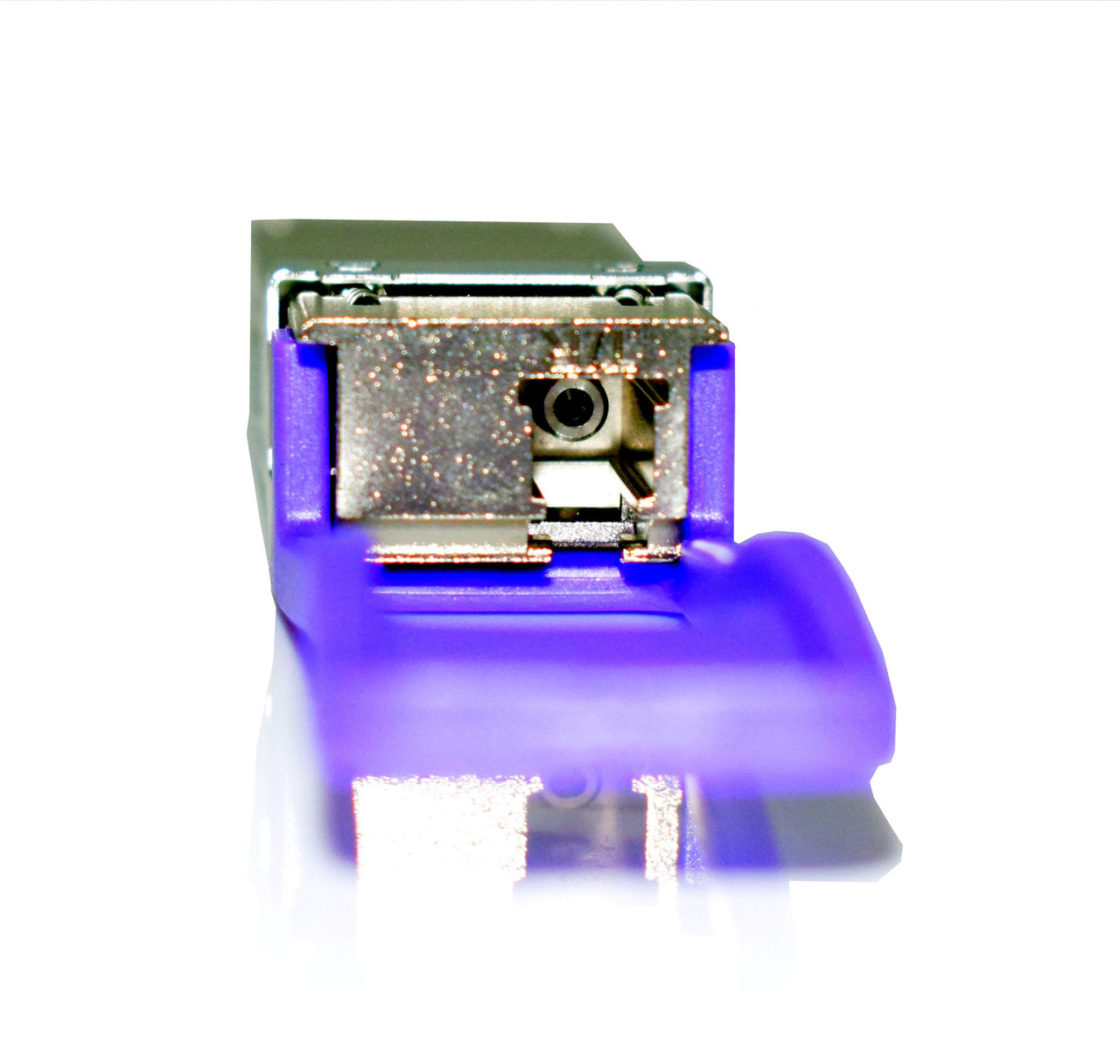

| Optical connector | single LC |
| Operating distance | 10Km |
| Power | single 3.3V |
| Compliance | MSA SFF-8431, RoHS |
| Operating mode | single-mode |
| Fiber type | Single-mode 9/125um, single strand |
| Wavelength | 1271/1331nm |
| Digital Diagnostic | Yes (SFF-8472 compliant) |
Additional information on QSFP-10010-WA transceiver:
PDF Datasheet
Other Details
2 yearsProduct Videos
Custom Field
Interface Type 100G
Fiber Type single-mode
Transceiver Format QSFP28
Wavelength 1271/1331nm
Tx Distance 10Km
Connectors LC
Connectors QSFP slot
Cable Type simplex
Cable Type 9/125um single-mode
