Product Description
Product description

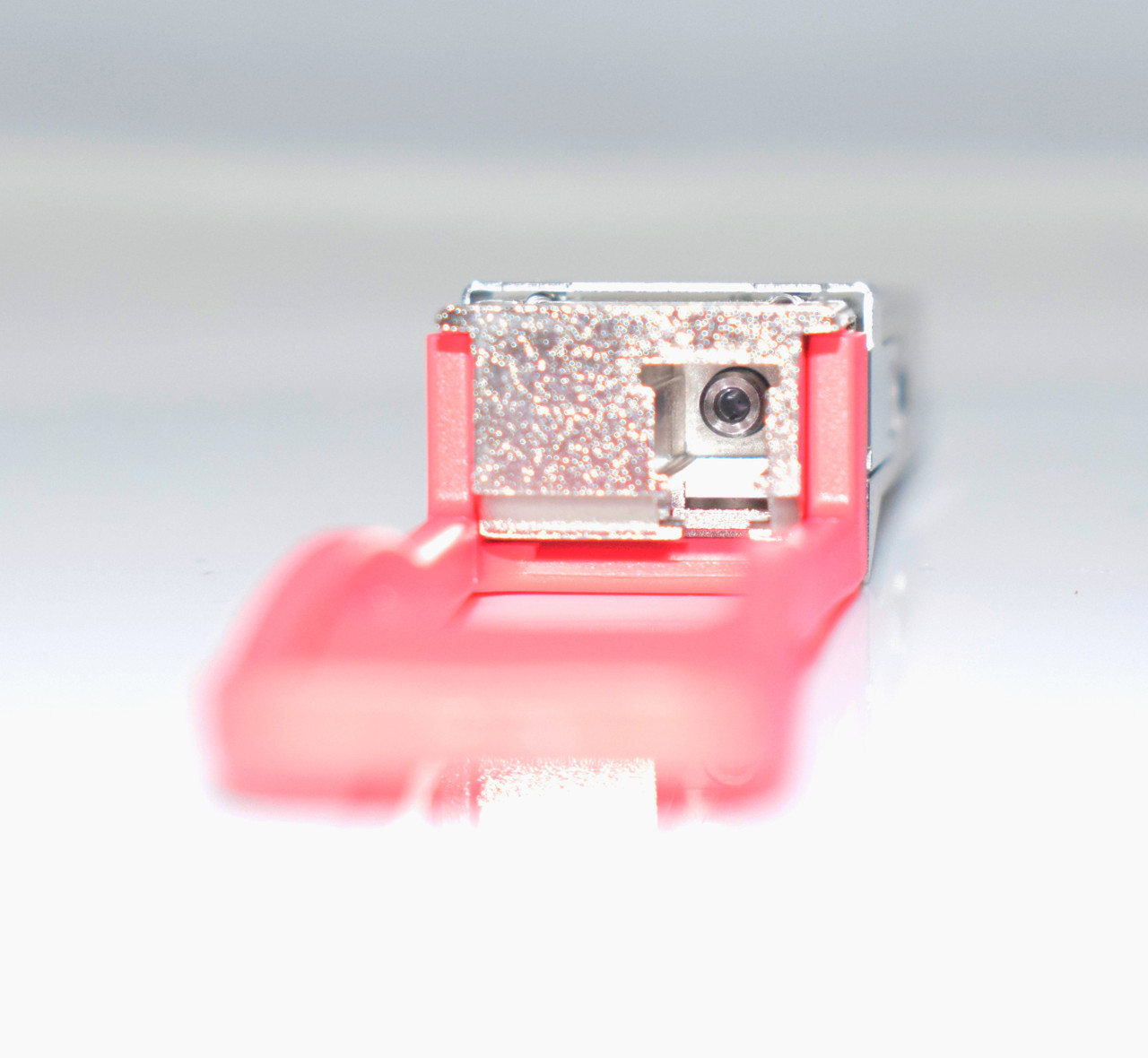

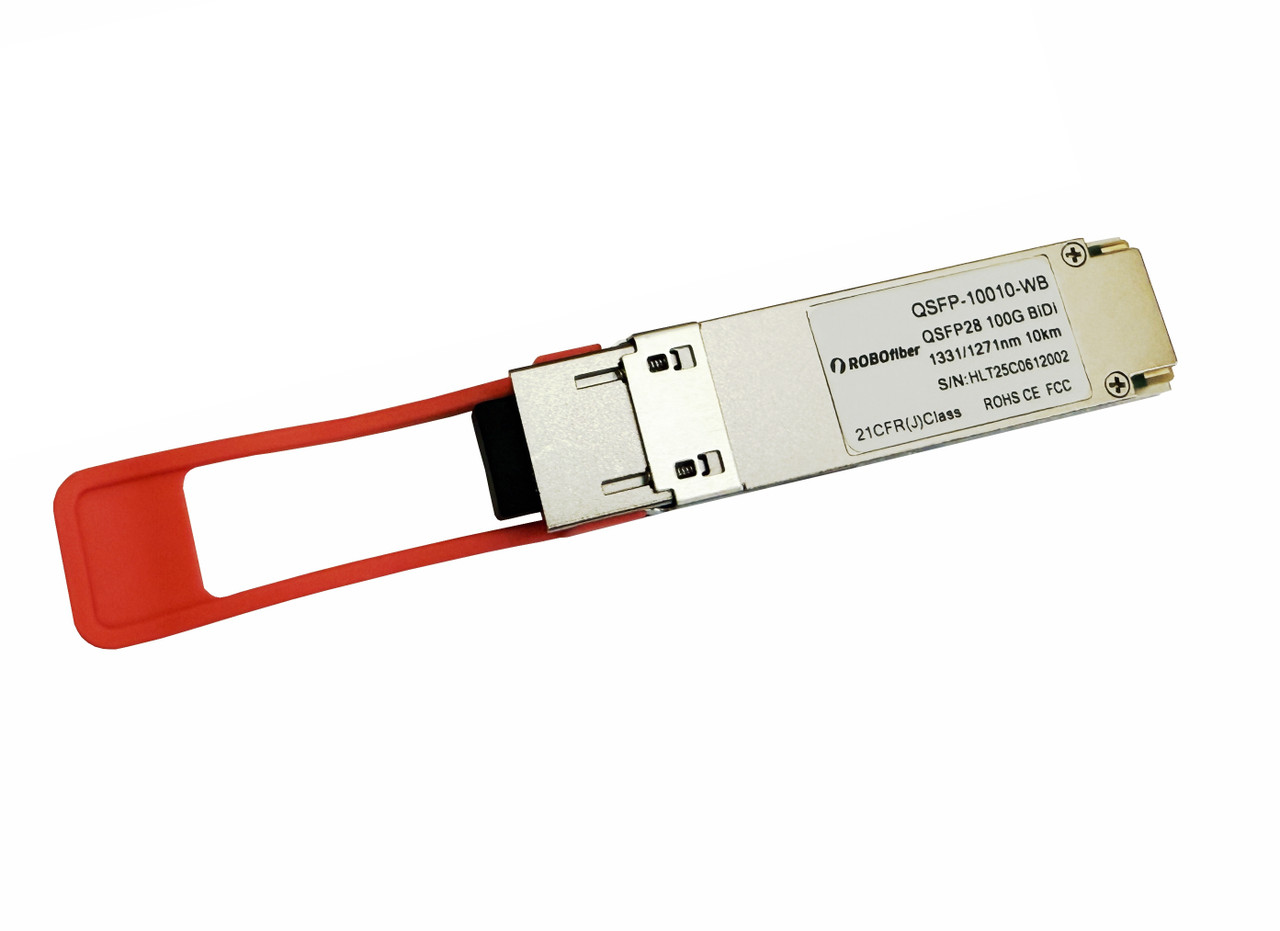

The QSFP-10010-WB is a Bi-Directional single strand single-mode 100G QSFP28 optical module. Transceiver uses a pair of single lambda lasers (T:1331/R:1271nm). The QSFP-10010-WB must be paired with QSFP-10010-WA using complementary wavelengths.
The transceiver has been tested and found compatible on 100G QSFP28 ready Ethernet switches from Arista, Cisco, Juniper, and Edge-Core. Transceiver operates into any 3rd party vendor equipment that follows the MSA open slot standard..
QSFP-10010-WB 100G QSFP28 SMF module specifications
| Form factor | QSFP28 |
| Speed | 100Gb/s |
| Optical connector | single LC |
| Operating distance | 10Km |
| Power | single 3.3V |
| Compliance | MSA SFF-8431, RoHS |
| Operating mode | single-mode |
| Fiber type | Single-mode 9/125um, single strand |
| Wavelength | 1331/1271nm |
| Digital Diagnostic | Yes (SFF-8472 compliant) |
Additional information on QSFP-10010-WB transceiver:
PDF Datasheet
Other Details
2 yearsProduct Videos
Custom Field
Interface Type 100G
Fiber Type single-mode
Transceiver Format QSFP28
Wavelength 1331/1271nm
Tx Distance 10Km
Connectors LC
Connectors QSFP slot
Cable Type simplex
Cable Type 9/125um single-mode
