Product Description
The ROBOfiber RB-4KHDMI is an HDMI optical extender which supports 4K resolution high-definition HDMI optical transmission, using a 10G data rate HDMI signal conversion chip. Using different SFP transceivers transmission can reach 60 km over SMF with no loss of quality nor delay of transmission. Supports HDMI 1.4 (with 3D) video signal transmissions, can pass the EDID, supports HDCP, supports resolution of up to 720p@60Hz, 1080i@60Hz, 1080p@60Hz, 1080p@120Hz, supports 7.1 channel PCM surround sound and audio compression and is compatible with DVI signal transmission and hot plug HDMI interface. The embedded return path RS232 interface allows remote control via fiber for automation applications of monitoring and control.

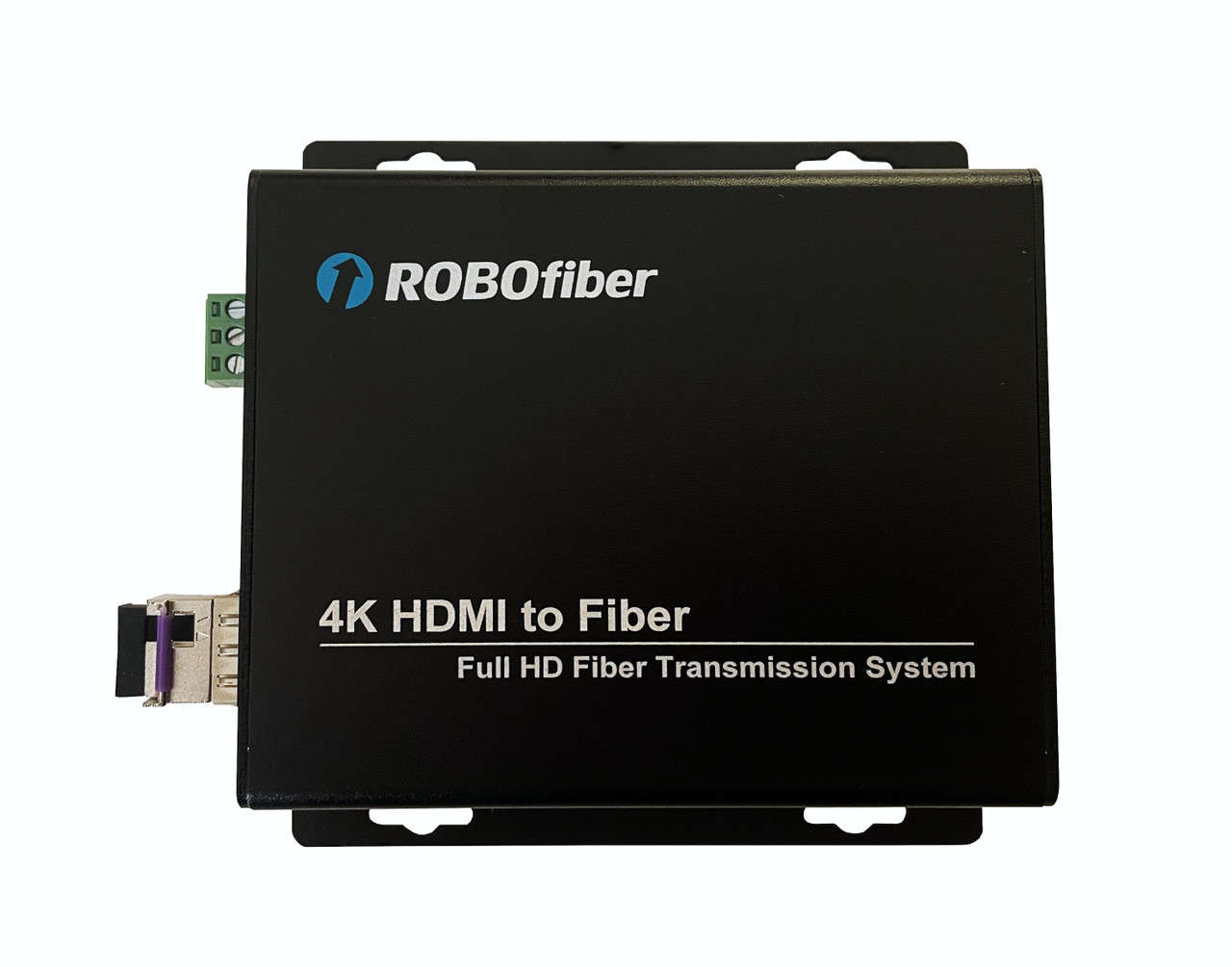

RB-4KHDMI-T is the transmitter unit that must be matched with the RB-4KHDMI-R receiver unit. A single strand of fiber, either SM type up to 20Km or MM type up to 500m reach can be used between transmitter and receiver. And RS-232 serial interface with 3 pin block connector is available and provides transmission of serial controls from receiver back to transmitter. Maximum serial data rate is 400Kbps asynchronous. This interface helps with controls that can be made from remote end (like PTZ camera control, door lock, alarm buzzer or lights or any other smart remote devices).The RB-4KHDMI converters can be installed in the RB-CH16 2RU, 19" rack mountable chassis. An additional plate needs to be changed for the same converter to be installed in the chassis.
Features
- Extends uncompressed multi-rate 4K HDMI video signals over fiber
- Supports HDMI 1.4 (and 3D) compliant signal
- 10G physical data rate over fiber
- Industrial temperature grade hardened units (-20 to +75 Celsius)
- Supports HDCP and EDID features
- Supports Single-Mode Fiber distance up to 20 km and Multi-Mode Fiber up to 500m over one strand of fiber only
- Transports one RS-232 3 pin interface with speed up to 400Kbps
- Accepts different SFP+ 10G transceivers for longer reach or CWDM/DWDM multiplexing applications
- High quality and resolution real-time video transmission
- LED status providing rapid reading of operational status
- No EMI or RFI and no ground loops
- Supports chassis hot swap, stand alone or card operating mode
Additional information on RB-4KHDMI fiber extender:
PDF Datasheet, PDF User Manual.
Note: Different 10G SFP+ optical modules are available for RB-4KHDMI video extender. Please visit the 10G SFP+ transceiver page or contact our sales department by e-mail or telephone.
