Product Description
The RB-AUDIO02 is a two channel XLR balanced audio ports extender over fiber optic. Unit supports broadcast quality audio signal and requires only one single strand of fiber, either singlemode or multimode type. The Transmitter unit has audio XLR female connectors, while the receiver has XLR male type connectors. The fiber optic system uses a 16bit digitally encoded mechanism that ensures highest broadcast quality for the audio signal. Frequency spectrum is 10Hz to 20kHz, providing high fidelity quality to the audio transport.

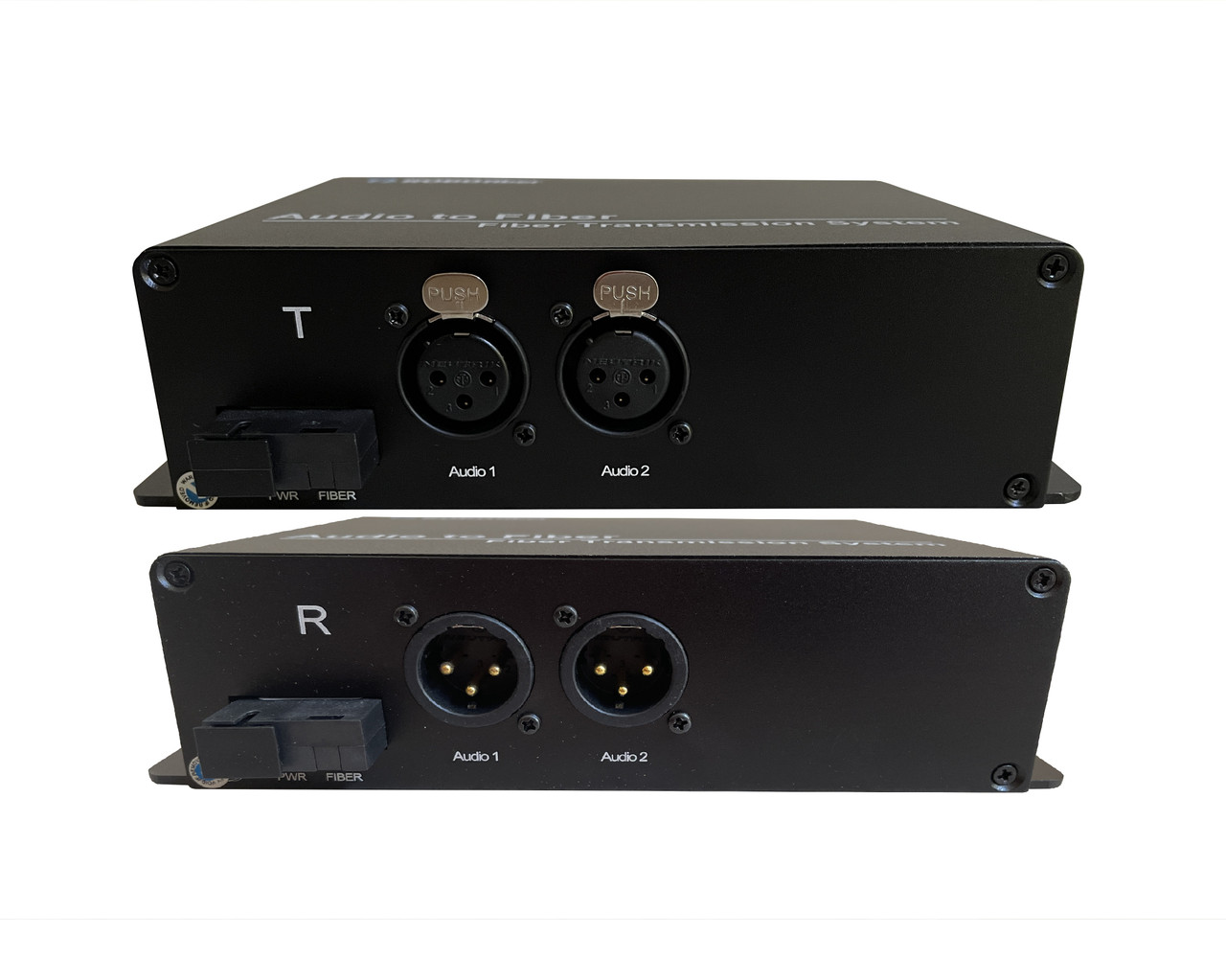

The RB-AUDIO02 is a set made of transmitter RB-AUDIO02-T transmitter and the RB-AUDIO02-R receiver unit. A single strand of fiber, either SM type up to 20Km or MM type up to 1Km reach can be used between transmitter and receiver. An AC adapter with wide 85-240V AC input and stable DC 12V/1A output is included with each transmitter and receiver units.
Features
- Extends two XLR audio signals at broadcast quality levels over fiber
- Single strand of fiber required
- Operates on SMF (singlemode fiber) up to 20Km reach or MMF up to 1Km reach

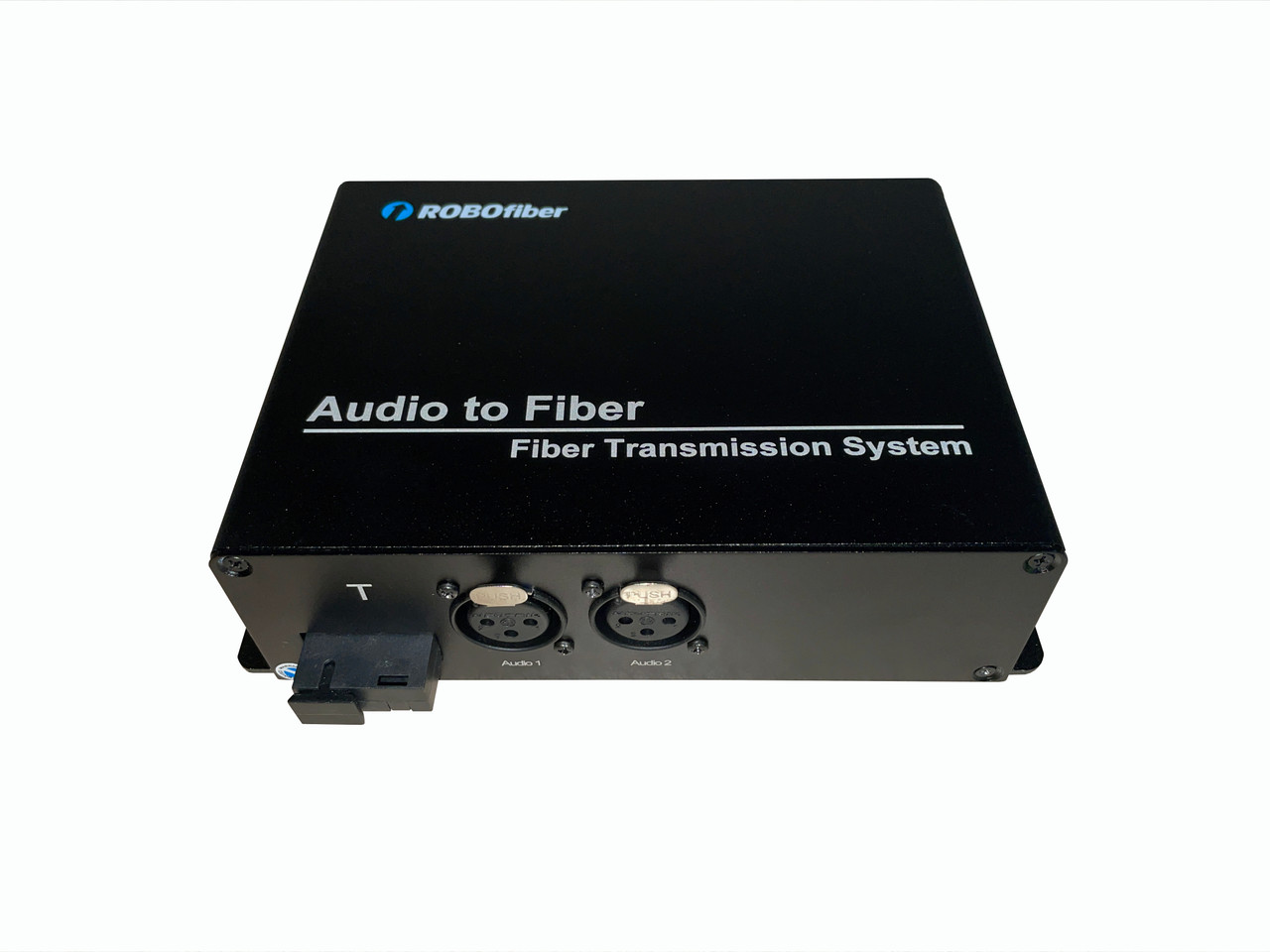

- The RB-AUDIO02-T is a transmitter unit with two XLR female connectors, the R unit has two XLR male connectors
- Frequency response of 10Hz~20kHz @ +/- 3dB
- Signal to Noise ratio > 90dB
- Supports Single-Mode Fiber distance up to 20 km over one strand of fiber only
- Distortion less than 0.05%
- Audio Level 16dBu
- Impedance In(bal): 600 Ohms+
- Impedance Out(bal): ˂ 10 Ohms+

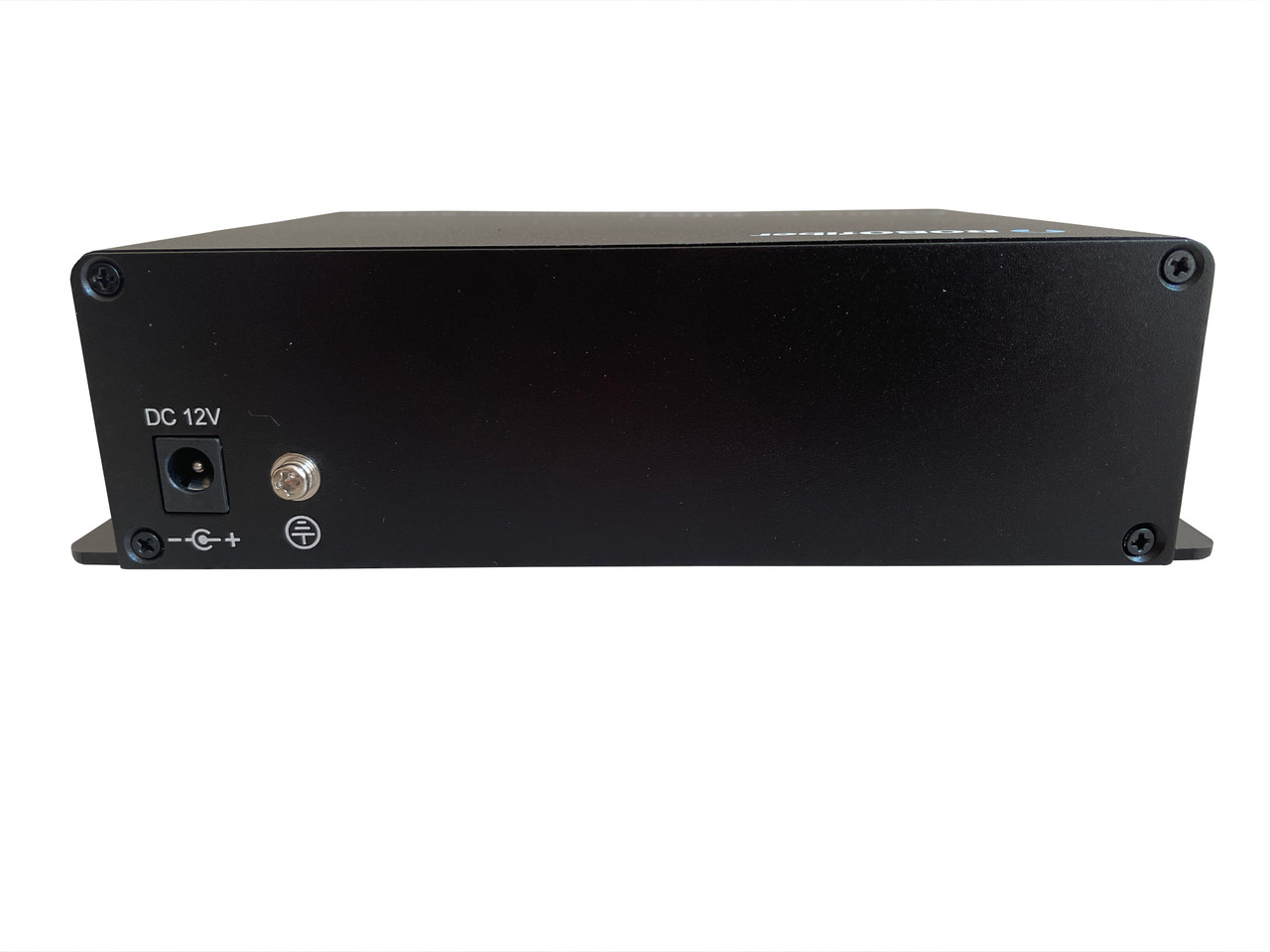

- Power Supply: AC 85-260V input with DC 12V/1A output (included AC adapter)
- Power Consumption: <5W
- LED status for Power and Fiber Link
Additional information on RB-AUDIO02 fiber extenders:
PDF Datasheet.
Note: The RB-AUDIO02 is a set of two units (Transmitter and Receiver) no other equipment is required for an Audio XLR port extension.
