Product Description
Product description

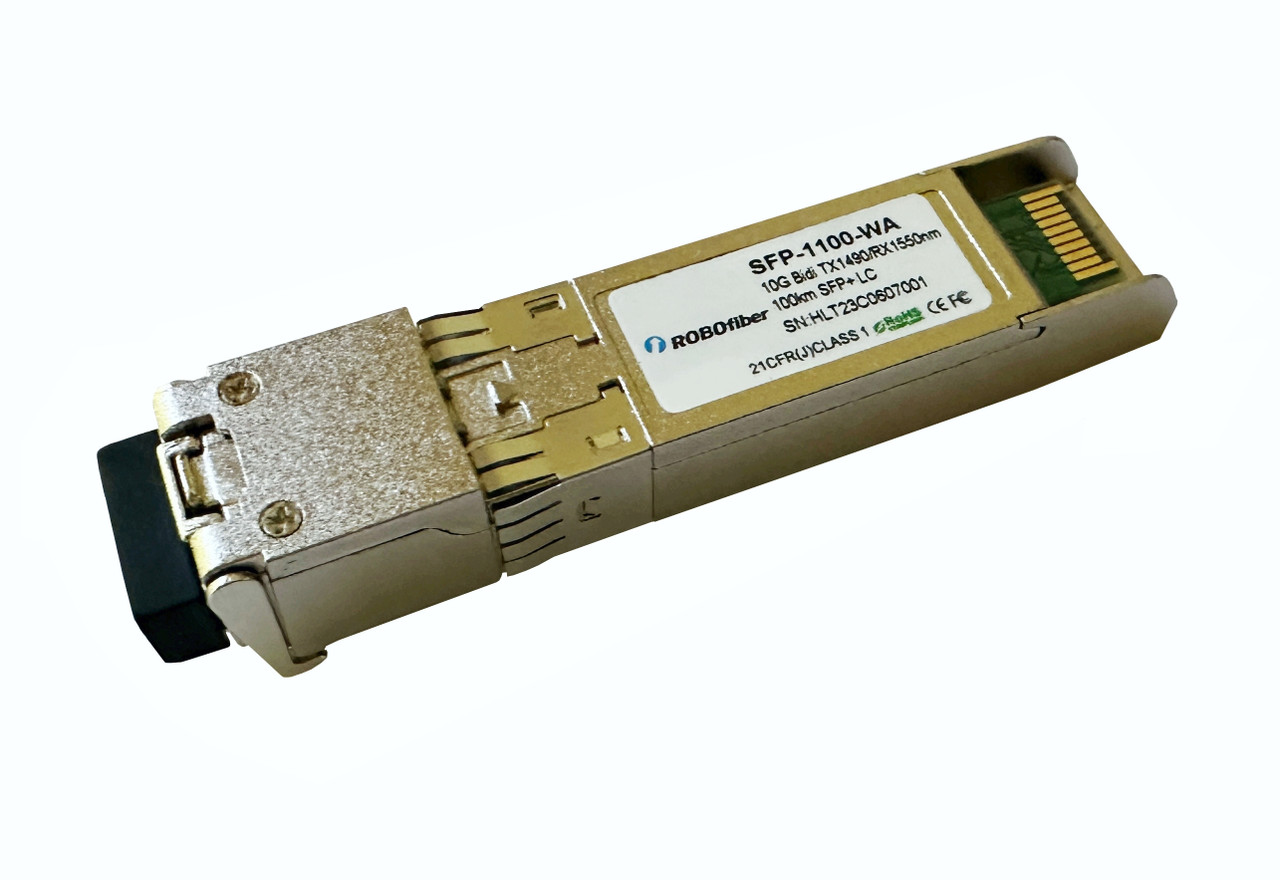

The SFP-1100-WA is a BiDirectional single fiber strand 10G SFP+ optical module using Tx:1490nm and Rx:1550nm wavelengths and supporting links up to 100Km over SMF.
The transceiver supports all 10G rated speeds for Ethernet, SONET, SDH or Fibre Channel networks.
SFP-1100-WA must be paired with the SFP-1100-WB model to have an operational link.
The BiDirectional optical transceivers offer a great advantage of saving precious dark fiber and thus practically doubling the fiber capacity when compared with the traditional two strand modules.
The transceiver supports all 10G rated speeds for Ethernet, SONET, SDH or Fibre Channel networks.
SFP-1100-WA must be paired with the SFP-1100-WB model to have an operational link.
The BiDirectional optical transceivers offer a great advantage of saving precious dark fiber and thus practically doubling the fiber capacity when compared with the traditional two strand modules.
The SFP-1100-WA and SFP-1100WB have been tested and found compatible with Cisco, ZyXEL, Edge-Core, D-Link, CTCUnion and many other switch vendors.
SFP-1100-WA 10G SFP+ single strand BiDirectional transceiver specifications
Additional information on SFP-1100-WA transceiver:
PDF Datasheet
SFP-1100-WA 10G SFP+ single strand BiDirectional transceiver specifications
| Form factor | SFP |
| Speed | 9.95 to 10.3Gb/s |
| Optical connector | single LC |
| Operating distance | 100Km |
| Power | single 3.3V |
| Compliance | MSA SFF-8431, RoHS |
| Operating mode | Bi-Directional |
| Fiber type | Single-mode 9/125um, single strand |
| Wavelength | Tx:1490nm/Rx:1550nm |
| Digital Diagnostic | Yes (SFF-8472 compliant) |
Additional information on SFP-1100-WA transceiver:
PDF DatasheetOther Details
3 yearsProduct Videos
Custom Field
Interface Type 10G
Fiber Type single strand single-mode
Transceiver Format SFP
Tx Distance 100Km
