Product Description
The Robofiber RB-3GSDI series are digital video fiber media converters using standardized all digital optical fiber transmission technology supporting SMPTE standards. HD SDI and 3G SDI video signals can be transmitted at high quality resolution for long reaches and without any distortion through only 1 strand of fiber optic cable. Status LEDs indicate operating mode of the converters, acknowledging proper fiber, video and serial connectivity. The embedded RS485 /RS232 interface allows remote control via fiber for automation applications of monitoring and control. The RB-3GSDI series are hardened for Industrial applications with wide operating temperature range and surge protectors.

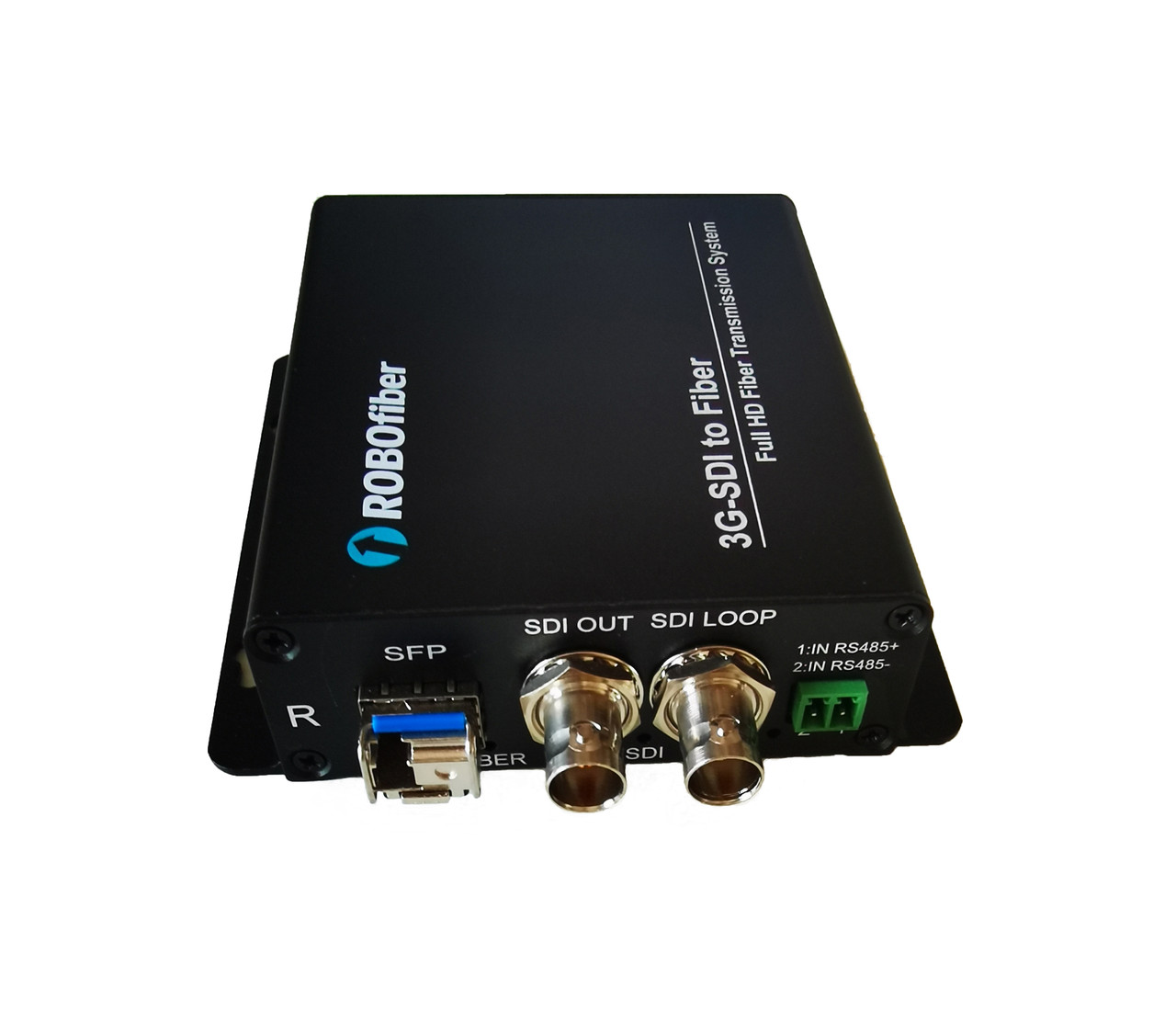

RB-3GSDI-01-R is the receiver unit that must be matched with the RB-3GSDI-01-T transmitter unit. A single strand of fiber, either SM type up to 20Km or MM type up to 2km can be used between transmitter and receiver. And an RS-485 serial interface with 2 pin block connector is available and provides transmission of serial controls from receiver back to transmitter. Maximum serial data rate is 400Kbps asynchronous. This interface helps with controls that can be made from remote end (like PTZ camera control, door lock, alarm buzzer or lights or any other smart remote devices).The RB-3GSDI converters can be installed in the RB-CH16 2RU, 19" rack mountable chassis. An additional plate needs to be changed for the same converter to be installed in the chassis.
Features
- Extends uncompressed multi-rate 3G-SDI, HD-SDI or SD-SDI video signals over fiber
- Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB ASI compliant signal
- 3Gbps physical data rate over fiber
- Industrial temperature grade hardened units (-20 to +75 Celsius)
- Supports clock recovery and clock re-shaping
- Supports Single-Mode Fiber distance up to 20 km over one strand of 9/125um fiber or MMF distance up to 2Km over either 50/125 or 62.5/125um cores
- Transports one RS-485 2 wire interface with speed up to 400Kbps
- High quality and resolution real-time video transmission
- LED status providing rapid reading of operational status
- No EMI or RFI and no ground loops
- Supports chassis hot swap, stand alone or card operating mode
Additional information on RB-3GSDI fiber extender:
PDF Datasheet, PDF User Manual.
Note: For chassis aggregation a front metal plate is required. Please contact our sales department by e-mail or telephone to discuss such options.
