Product Description
The ROBOfiber RB-VIDEO series are simple composite video fiber media converters using optical fiber transmission technology to transport CCTV signals. RB-VIDEO series support TVI and AHD video formats for Analog HD video signals, transmitting high quality signals for long reaches and without any distortion through only 1 strand of fiber optic cable. Status LEDs indicate operating mode of the converters, acknowledging proper fiber, video and serial connectivity. The embedded RS485 /RS232 interface allows remote control via fiber for automation applications of monitoring and control.

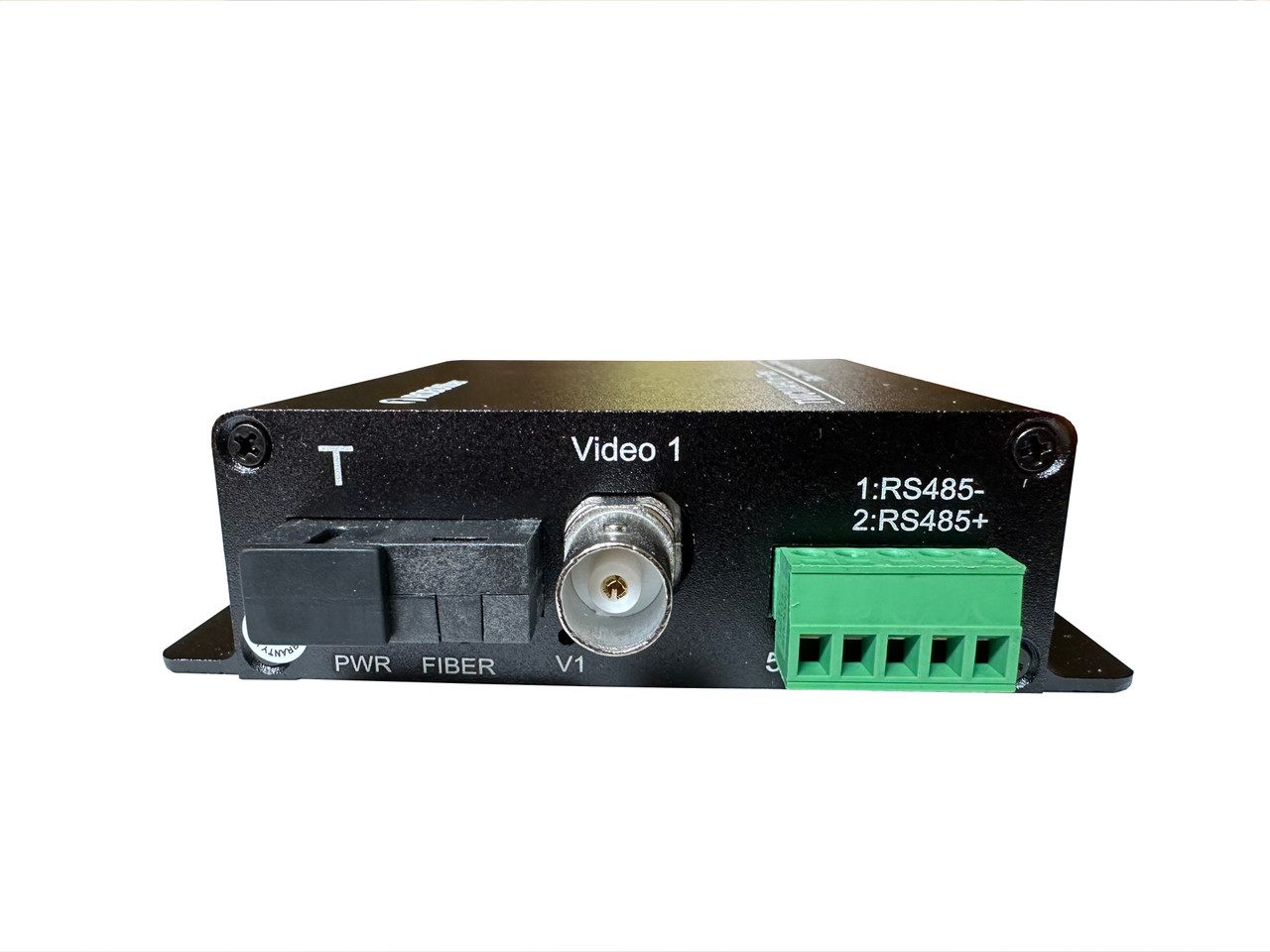

RB-VIDEO-1D1-T is the transmitter unit that must be matched with the RB-VIDEO-1D1-R receiver unit. A single strand of fiber, either SM type up to 20Km or MM type up to 1Km reach can be used between transmitter and receiver. And an RS-485 serial interface with 2 pin block connector is available and provides transmission of serial controls from receiver back to transmitter. Maximum serial data rate is 400Kbps asynchronous. This interface helps with controls that can be made from remote end (like PTZ camera control, door lock, alarm buzzer or lights or any other smart remote devices).The RB-VIDEO converters can be installed in 19" rack mountable chassis. Please contact us for such options.
The RB-VIDEO-1D1 is sold as a SET OF TWO units, transmitter and receiver.
Features
- Extends Analog HD (TVI or AHD) video signals over singlemode fiber up to 20Km (or multimode up to 1Km only)
- Supports TVI compliant signal
- Supports clock recovery and clock re-shaping
- Supports Single-Mode Fiber distance up to 20 km over one strand of 9/125um fiber only
- Transports one RS-485 2 wire interface with speed up to 400Kbps
- High quality and resolution real-time video transmission
- LED status providing rapid reading of operational status
- No EMI or RFI and no ground loops
- Supports chassis hot swap, stand alone or card operating mode
Additional information on RB-VIDEO-1D1 fiber extender:
PDF Datasheet.
Note: For chassis aggregation a front metal plate is required. Please contact our sales department by e-mail or telephone to discuss such options.
